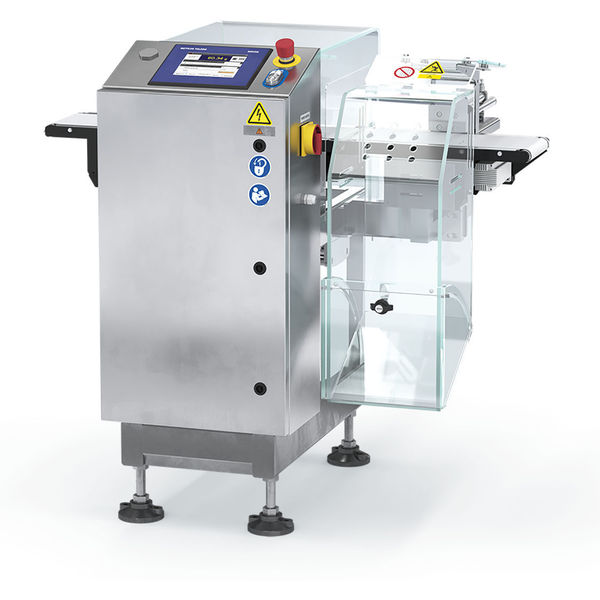

Checkweigher C16 PlusLine NSMTO
Reliable Precision.The C16 delivers accurate weighing results at speeds of up to 300 pieces per minute for all applications.
Flexibility in Dry Environments
The versatile C16 PlusLine with an IP54 rating is ideally suited for weighing products such as flow-packs or boxes in dry food and pharma applications.
Reliable and Adaptable Accuracy
Choose the best weighing range for your application: Precision for lightweight products from 1g - 600g and Performance for packages from 10g - 6000g.
Advanced Speeds
A conveyor design with reduced roller diameters ensures smooth product transfer at a max speed of 90 m/min and a throughput of 300 pieces/minute.
Material No.: 3057282300
Features
Intuitive Operation
An intuitive user interface on a multilingual 6.5" high-contrast color touchscreen located in front of the conveyor offers maximum operator safety.
Easy Integration
Open interfaces allow for production data to be accessed, analyzed and controlled anywhere, ensuring the system integrates into the production process easily.
Systematic Safety Design
Hazard notifications are placed according to a strict risk assessment. A shield guard covers each reject device to ensure safe operation. An emergency stop button can instantly cut the power supply and rapidly decrease pneumatic pressure.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Specifications - Checkweigher C16 PlusLine NSMTO
| IP Rating | IP54 |
| Compatible Software | ProdX |
| Connectivity | Ethernet TCP/IP Fieldbus OPC UA |
| Inspection Solution | Checkweighing |
| Max Product Width | 400 mm |
| HMI | 7" Touchscreen |
| Packaging Type | Bags Bundles Cardboard Cartons Cases Composite Cans Flow Packs Trays |
| Inspection Application | Completeness Check Weight Control |
| Product Characteristic | Medium-Large Packages Small-Medium Packages |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Weighing Accuracy | from ±0.01 g |
| Industry Segment | Agriculture and Bulk Foods Beer, Wine and Other Alcoholic Beverages Cosmetics Dairy Fine and specialty chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Pet Food and Animal Feed Pharma Ready Meals Water and other Non-Alcoholic Beverages |
| Max Product Weight | 6 kg |
| Max Line Speed | 150 m/min |
| Max Throughput | 300 ppm |
