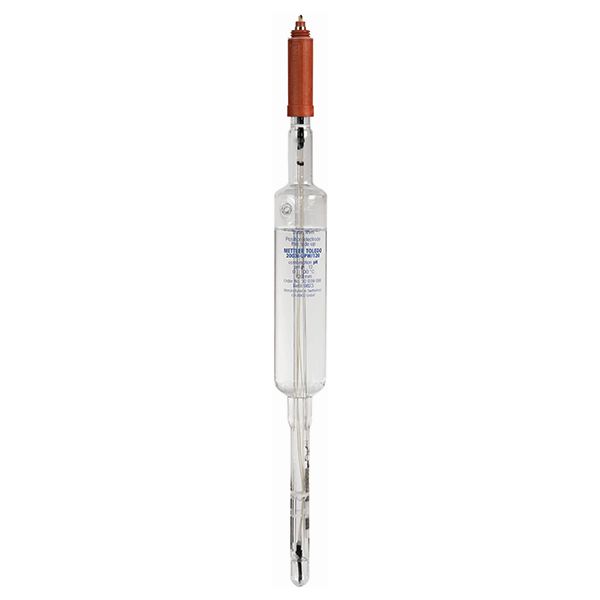

pH Sensor Pure Water pHure LE ISM
Reliable Measurement in Pure Waters.The pHure sensor LE with a refillable electrolyte delivers the most accurate and convenient pH measurement available in very low conductivity water. This Intelligent Sensor Management (ISM) pH sensor provides predictive sensor-health diagnostics.
High Dependability in Low Conductivity
The pHure LE sensor with free-flowing liquid electrolyte design is simplified to deliver the most accurate pH measurement available in pure waters.
Refillable Sensor with Long Lifetime
This pH sensor uses a self-contained, easily refillable 3M KCl electrolyte chamber to ensure reliable results over a long lifetime.
Advanced Sensor Diagnostics with ISM
The pHure LE uses ISM advanced diagnostics that adapt to your processes to help plan calibration and maintenance of your pure water pH sensor.
Material No.: 30039086
Features
Highest Accuracy in Low Conductivity
Designed to excel in challenging conditions, the pHure LE delivers the most accurate pH measurement available in pure waters. Constant electrolyte flow through the junction provides monitoring confidence in the lowest conductivity applications.
Reduce Measurement Complexity
The pHure LE eliminates the need for separate measuring, reference, and temperature compensating probes in a self-contained, easily refillable liquid electrolyte chamber. Simple maintenance ensures reliable sensor operation in your process for several years.
Increase Process Uptime
Leveraging ISM technology, seamlessly upload calibration data from lab to process for fast, error-free start-up. Achieve uptime goals with predictive diagnostics on sensor calibration, maintenance, or replacement needs adapted to your process conditions.
Optimized for Cycle Chemistry
An integral platinum solution ground allows the pHure LE to measure both pH and ORP, making it particularly well-suited to power plant applications. Accurate control of ORP can prevent copper oxidization and flow-accelerated corrosion of iron piping.
Specifications - pH Sensor Pure Water pHure LE ISM
| Process Connection | ¼" NPT(F) in/ out |
| Operating Temperature (Celsius) | 0 °C - 100 °C |
| Operating Temperature (Fahrenheit) | 32 °F - 212 °F |
| Sample Flow rate | 50 to 150 ml/min |
| Sample Conductivity > (μS/cm) | 0.3 |
| Refillable Electrolyte | 9823 3M KCl |
| pH Range | 1 – 12 |
| Sterilizable/Autoclavable | No |
| Sensor Length | 120 mm |
| Cable Connector | AK9 |
| Operating Pressure (Bar) | 0-7 barg @ 100 °C |
| Model Family | pHure |
| Other certificates | CE |
| pH Sensing Technology | Steam Sterilizable Glass Membrane (A41) |
| Reference System | 3M KCl |
| Temperature Sensor | Digital |
| Hazardous Area Approvals | No |
| ISM (Digital) or Analog | ISM (Digital) |
| Measurement Parameter | ORP/Redox pH |
| Primary Media/Application | Other Water Processes Power Plant Water/Steam Semiconductor Water |
| Shaft Material | Glass |
| Hygienic/Biocompatibility Approvals | No |
| Operating Pressure (PSI) | 0-101 psig @ 212 °F |
| Solution Ground/Redox Metal | Platinum |
Datasheets
Accurate, continuous pure water monitoring can reduce expensive unplanned maintenance, downtime and capital equipment expenditure. The pHure Sensor LE...
