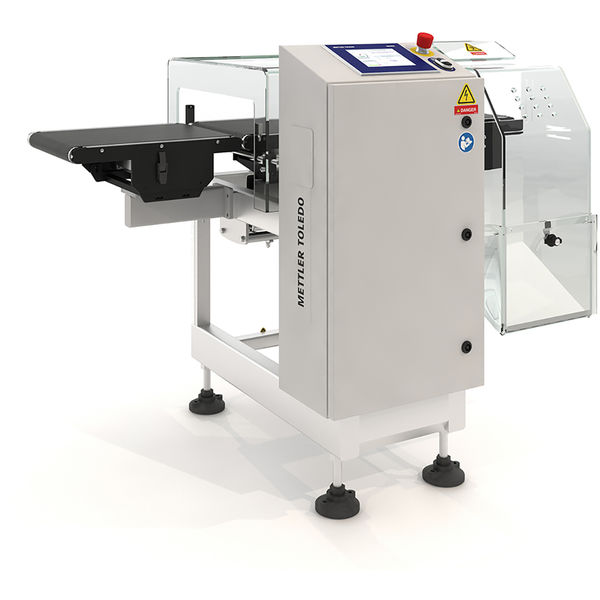

Checkweigher C1200 Compact
Dependable Accuracy.The flexible and compact C12 StandardLine checkweigher offers efficient and reliable 100% weight inspection with a throughput of up to 200 packs per minute, delivering high weighing accuracy for products up to 6000g.
Efficient Product Handling
50 performance and productivity enhancing options, additional conveyors, and adjustable guide rails ensure best-in-class product handling.
Versatility for Demanding Environments
Designed for endurance and reliability in wet, dry, and harsh working environments. Specialized conveyors allow regular hygiene cleaning routines.
Data Collection for Compliance Support
Open interfaces with ten data communication protocols provide easy access for data analysis, supporting Industry 4.0 initiatives. ProdX interface.
Material No.: 3013882200
Features
Metal Detector Integration
Also available as a combination system with an integrated Safeline ASN metal detector to ensure the safe rejection of contaminated products and on target weights in one compact system. Ideally suited as a critical control point.
Intuitive Operation
Systems are operated from an intuitive, multilingual 6.5" high-contrast color touchscreen display with emergency stop switch, positioned in front of the conveyor for ease of use and maximum operator safety.
Reliable Weighing Technology
The METTLER TOLEDO strain gauge load cell with OIML R60 Class 3 approval delivers reliable and accurate weighing results and features temperature compensation.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offer allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Specifications - Checkweigher C1200 Compact
| IP Rating | IP54 IP65 |
| Compatible Software | ProdX |
| Connectivity | Ethernet TCP/IP Fieldbus OPC UA |
| Inspection Solution | Checkweighing |
| Max Product Width | 400 mm |
| Max Weighing Zones | 3 |
| Weighing Technology | Strain Gauge |
| HMI | 7" Touchscreen |
| Packaging Type | Bags Bottle Bundles Cardboard Cartons Cases Composite Cans Flow Packs Trays VFFS |
| Product Flow | Conveyor |
| Inspection Application | Completeness Check Weight Control |
| Product Characteristic | Deep Frozen Dry Medium-Large Packages Open Round Container Small Individual Wrapped Products Small-Medium Packages Wet |
| Industry | Chemical Food & Beverage Metal, Plastic and Electronics Components Pharma & Biotech |
| Weighing Accuracy | from ±5 g |
| Industry Segment | Automotive Bakery and Confectionery Beer, Wine and Other Alcoholic Beverages Cosmetics Dairy Fine and specialty chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| Max Product Weight | 6 kg |
| Max Line Speed | 150 m/min |
| Max Throughput | 200 ppm |
