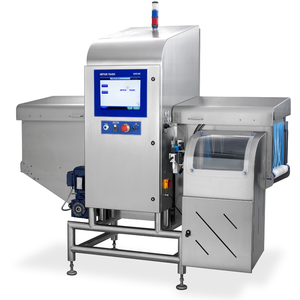

X36 Series
Adaptable and Advanced Integrity.Highly configurable, the X36 offers the highest level of integrity checks across multiple product lanes at high throughput rates for complete brand protection and compliance.
Achieving Outstanding Quality Assurance
Outstanding product safety and quality is achieved by providing the highest levels of contamination detection and product integrity checks.
Future-proof Investment
The X36 is a flexible X-ray solution that can be integrated into an existing production line and inspect multiple product lines with just one system.
Safeguarding Products At High Speeds
Irrespective of throughput rates, continuous optimum detection sensitivity is enabled through full resolution inspection software and imaging capabilities.
Material No.: 3046872200
Features
Customization of Standard Solutions
Our experienced X-ray engineers are able to customize the X36 to suit your individual application challenges.
Upholding Brand Integrity
Our unique proprietary X-ray software, ContamPlusTM, conducts a full range of integrity checks and removes sub-standard products from the line with minimum FRR.
Protecting Multiple Product Ranges
A variety of X-ray generator and power options are available to ensure the greatest detection sensitivity levels are achieved for your full product range.
5-Year Generator Warranty
Minimize your downtime and protect the most valuable and expensive part of your inspection system, the x-ray generator, for 5 years when you purchase it with a Standard or Comprehensive Care Package.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Enhancing Production Data Visibility
Ensure the highest levels of regulatory compliance through real-time data collection. ProdX, our PC-based software, constantly monitors and fully documents all production parameters, quality incidents, user interactions and performance verification routines.
Specifications
Specifications - X36 Series
| IP Rating | IP65 IP69 |
| Compatible Software | ProdX |
| Connectivity | Ethernet OPC UA USB |
| Inspection Solution | X-ray Inspection |
| Max Product Width | 580 mm |
| HMI | 15.6" Touchscreen |
| Packaging Type | Cardboard Cartons Metalized Film Plastic Trays |
| Cooling Method | Air Conditioner Air Conditioner & Radiator Pump |
| Product Flow | Conveyor |
| X-ray Beams | Single vertical beam |
| X-ray Generator | 100 W, up to 84 kV, up to 3.3 mA Glass Tube 420 W, up to 84 kV, up to 5.0 mA Beryllium Tube 420 W, up to 84 kV, up to 5.0 mA Glass Tube |
| Inspection Application | Clip Detection Completeness Check Contamination Detection Fill level Check Integrity Check Mass Control Product-Trapped in Seal |
| Product Characteristic | Medium-Large Packages |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Max Product Height | 300 mm |
| Industry Segment | Bakery and Confectionery Beer, Wine and Other Alcoholic Beverages Bulk Chemicals Cosmetics Dairy Fine and specialty chemicals Food Additives Meat & Poultry & Seafood Nutraceuticals Oils and Fats Pet Food and Animal Feed Pharma Ready Meals Snack Foods Sugar Starch and Yeast Water and other Non-Alcoholic Beverages |
| X-ray Detector | Single Energy, HiGain Technology |
| Max Product Weight | 25 kg |
| X-ray Emissions | < 1uSv/hr |
| Max Line Speed | 100 m/min |
| Max Throughput | 1000 ppm |
| Diode Size | 0.4 mm 0.8 mm |
Documentation
Datasheets
The X36 X-ray Inspection System is a multi-lane solution designed for the inspection of small, medium and large sized packaged products.
