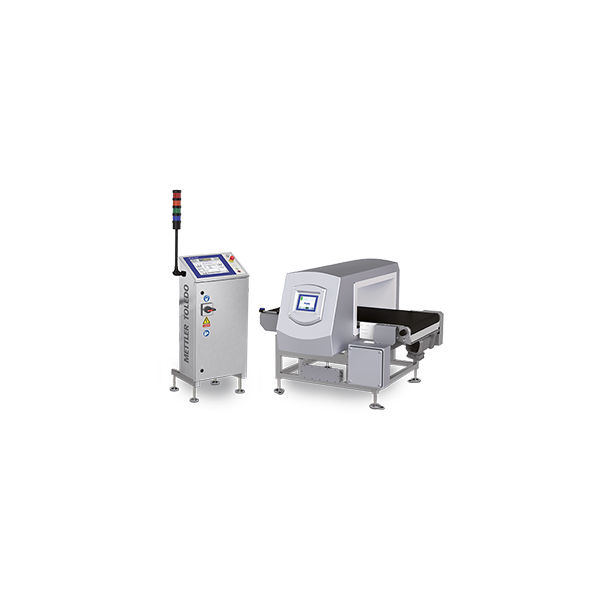

CM23 Combination Inspection System
Weight Control and Metal Detection.This compact, easy to operate combination system is designed to deliver reliable metal detection and weight control for heavy loads up to 80 kg and can be configured to different application needs even in challenging environments.
Compact Critical Control Point
This compact, integrated system effectively detects metal contaminants and provides reliable weight control for heavy loads to support compliance.
Space-Saving System Design
An extremely small, metal-free zone and highly efficient load cells enable simultaneous weighing and metal detection on a single conveyor.
Meets MID Requirements
Delivers high accuracy in line with MID requirements, providing quality assurance and reducing costly product waste for loads of up to 80 kg.
Material No.: 2400231000
Features
Innovative Conveyor Belt Design
The single conveyor features an innovative belt design with quick-release mechanisms to support easy belt changes within minutes, drastically reducing service downtime and supporting worker safety.
Optimized Sensitivity and Performance
The METTLER TOLEDO metal detector features multiple ultra-high tuned frequencies with enhanced noise and vibration immunity and exceptional sensitivity to consistently detect more metal.
Intuitive Operation
The system supports intuitive operation in over 30 languages via the 12" color touchscreen positioned in front of the conveyor for ease of use. Machine messages are communicated as clear text for easy understanding
Scalable Weighing Performance
Choice of standard or high performance load cell available to match your application requirements, supporting maximum reliability in dry, dusty or wet environments with an IP54 or IP65 rating.
Data Governance to Support Performance
Over 10 different interface / protocol combinations including Ethernet, Fieldbus and OPC technologies enable IoT / Industry 4.0 initiatives so that production data can be accessed, analyzed and controlled anytime and anywhere.
Global Service Support
A global network of service experts provide fast remote and on-site support. Our comprehensive service offering allows you to achieve regulatory compliance, high performance, and maximum uptime throughout the life cycle of your product inspection equipment.
Specifications - CM23 Combination Inspection System
| IP Rating | IP54 IP65 |
| Compatible Software | ProdX |
| Connectivity | Ethernet TCP/IP Fieldbus OPC UA |
| Inspection Solution | Checkweighing-Metal Detection |
| Max Product Width | 450 mm |
| Max Weighing Zones | 7 |
| Weighing Technology | Strain Gauge |
| HMI | 12" Touchscreen 7" Touchscreen |
| Packaging Type | Bags Bottle Bundles Cartons Cases Pallets |
| Product Flow | Conveyor |
| Max Product Length | 570 mm |
| Frequencies | up to 800 kHz |
| Inspection Application | Contamination Detection Weight Control |
| Product Characteristic | Deep Frozen Dry Heavy Weight Packages Wet |
| Industry | Chemical Food & Beverage Pharma & Biotech |
| Weighing Accuracy | from ±10 g |
| Max Product Height | 200 mm |
| Industry Segment | Agriculture and Bulk Foods Bakery and Confectionery Bulk Chemicals Cosmetics Dairy Fine and specialty chemicals Meat & Poultry & Seafood Pet Food and Animal Feed Ready Meals Snack Foods Sugar Starch and Yeast |
| Max Product Weight | 80 kg |
| Max Line Speed | 150 m/min |
| Max Throughput | 150 ppm |
